02 / CNC trimming & machining
The shape.
The edge. The finish.
Five-axis CNC trimming and three-axis machining give formed plastic components their final profiles, apertures and machined features.
Machining capability
Five-axis trimming.
Three-axis machining.
Our CNC fleet includes five Geiss five-axis machines, an Anderson Genesis EVO 510 and two Pacer machines. Tebis and Cimatron support our CAD/CAM workflow.
Geiss CNC10 technology
Engineered for
the finished profile.

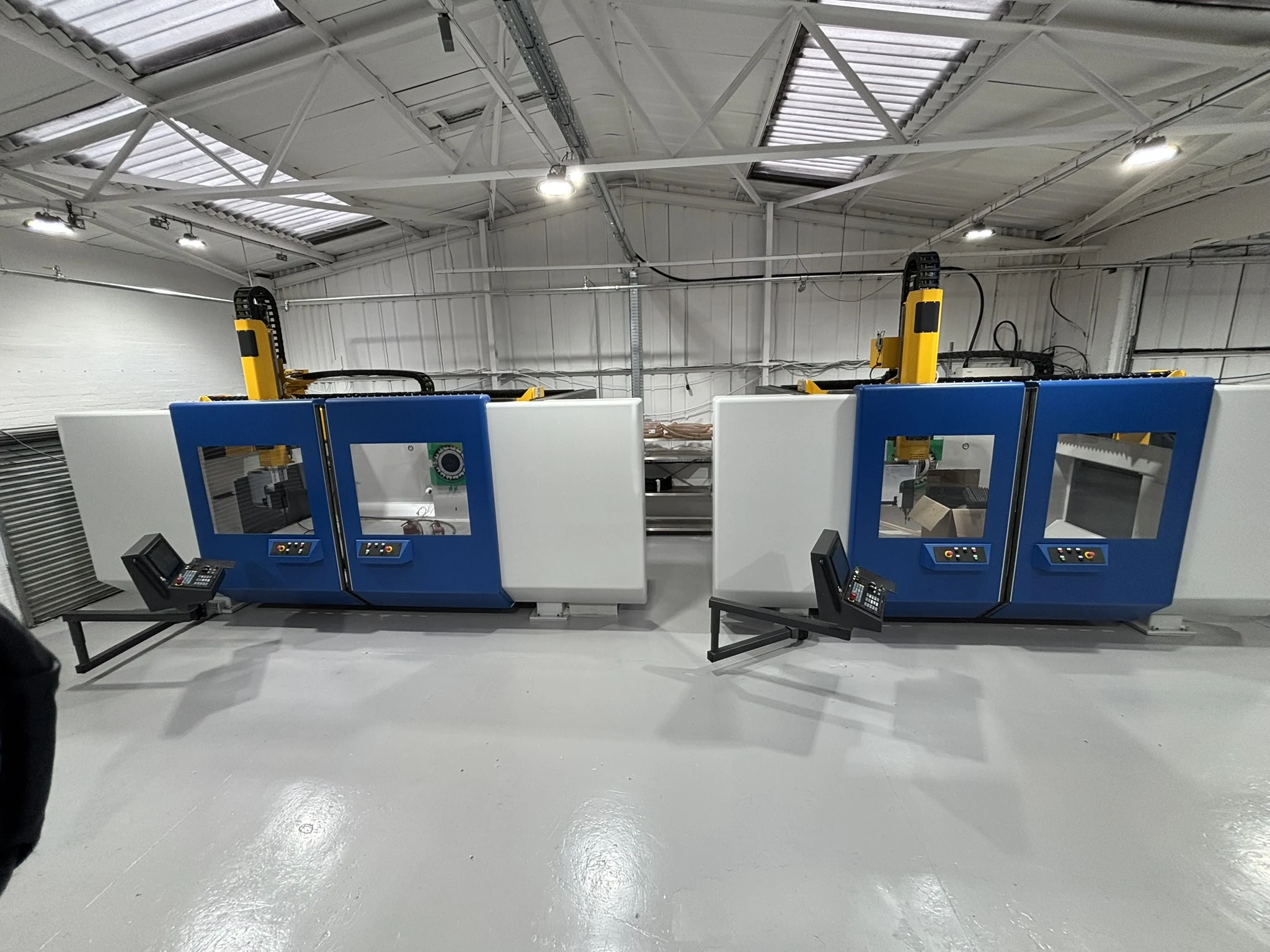

Our two CNC10 machines combine five-axis trimming with 12-station tool changers. Working envelopes of 2500 × 1500 × 560 mm and 2000 × 1000 × 560 mm support a range of component sizes.
Five-axis access
Controlled tool orientation supports trimming around contoured components and access to features on different faces.
Tools for the operation
12-station tool changers provide multiple tools within the machining programme for the required trimming and finishing operations.
A rigid platform
Geiss designs its CNC10 platform around a stiff machine structure and low-mass moving axes to support machining stability and responsive movement.
Platform background: Geiss CNC trimming technology. See our fleet table for the capacities and controls of each installed machine.
Inside YC Plastics
Watch CNC trimming.
A closer look at the trimming process inside our factory.

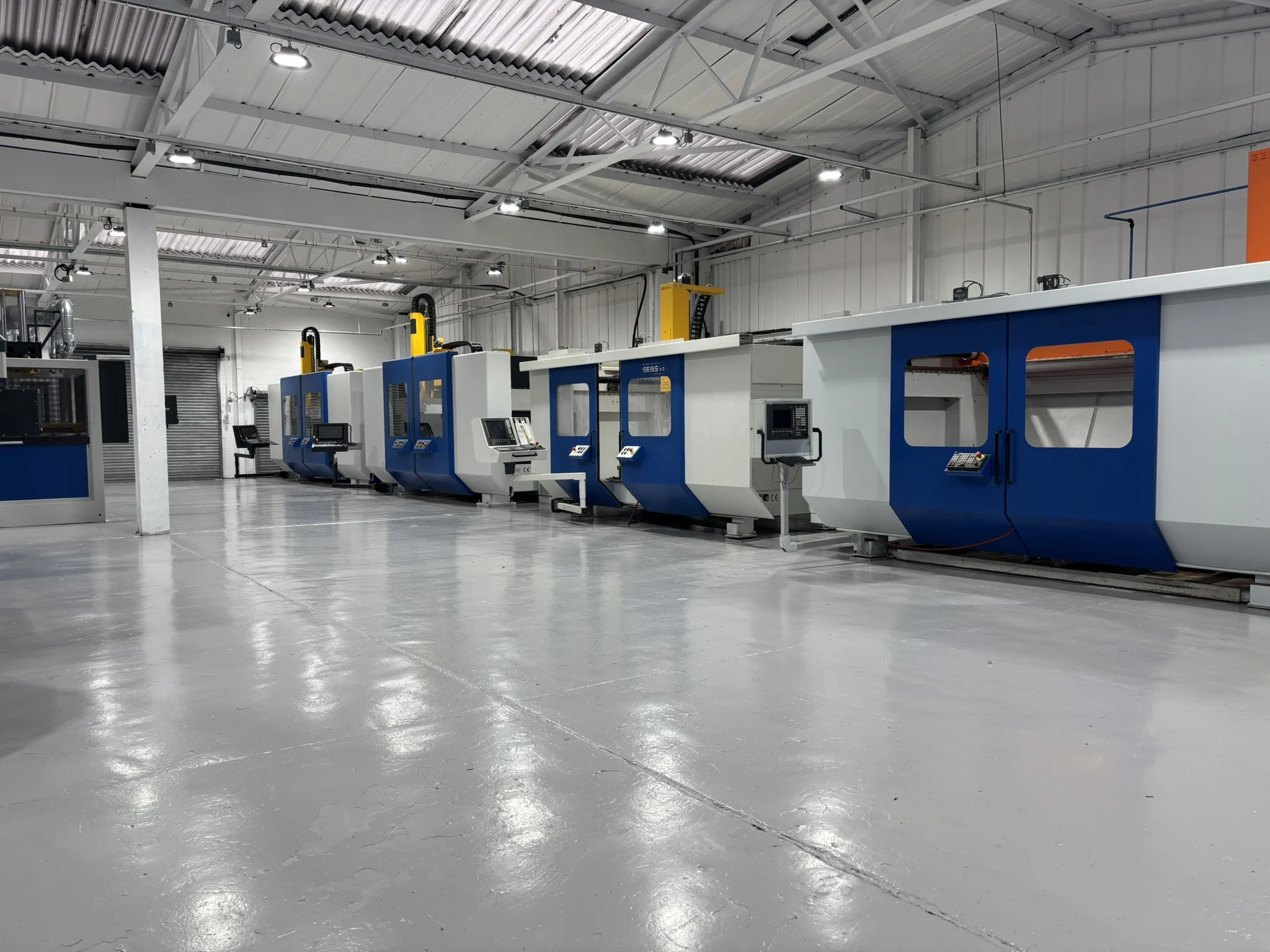

CNC fleet
The equipment behind the finish.
View CNC fleet & working dimensions +
| Machine | Working dimensions | Capability / control |
|---|---|---|
| Geiss FZ 2500 × 1500 × 560 | 2500 × 1500 × 560 mm | CNC10 · 5-axis · 12-station toolchanger |
| Geiss FZ 2000 × 1000 × 560 | 2000 × 1000 × 560 mm | CNC10 · 5-axis · 12-station toolchanger |
| Geiss FZ 2000 × 1000 × 560 | 2000 × 1000 × 560 mm | 840 D ECO 5-axis |
| Geiss FZ 2000 × 1000 × 560 | 2000 × 1000 × 560 mm | 840 D ECO 5-axis |
| Geiss FZ 2000 × 1000 × 560 | 2000 × 1000 × 560 mm | 840 D 5-axis CNC trimming · Linear motors |

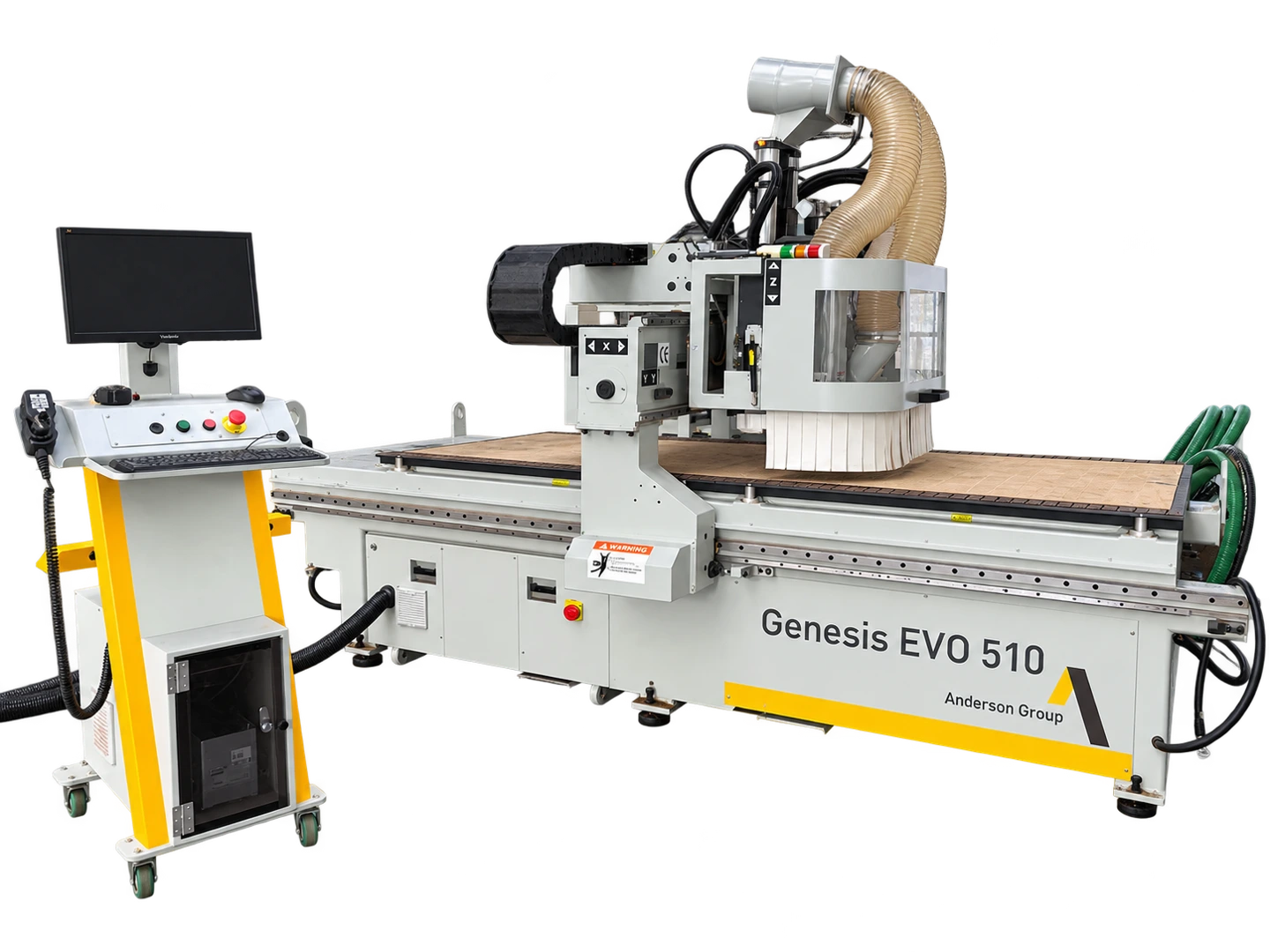

| Anderson Genesis EVO 510 | 3000 × 1350 mm | 3-axis machining · 9-station tool changer · 9-station drill head |
| Pacer CNC | 2500 × 1200 mm | 3-axis machining · Toolchanger |
| Pacer CNC | 1000 × 600 mm | 3-axis machining · Toolchanger |
Supporting the whole component
A finished part needs more than a formed shape.
We connect forming and machining with bonding, welding and fitted components, according to the assembly requirements.
From first idea to finished part
Let’s make it happen.
Send us a drawing, a sample or the details of your trimming or machining requirement.
